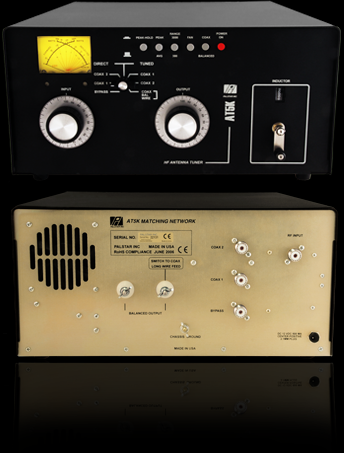

AT5K
| Output Power: | 3500 Watts single tone continuous, low tuner losses, and wide Z range |
| HF Bands: | 15m to 160m with limited Z range on 10m |
| Tuning: | Three controls |
| Antenna switching: | 10 Amp RF 6 position mode switch for multiple antennas |
| Capacitor: | custom large plate variable capacitors; 600pF@6 kV |
| Roller inductor: | 10 Amp 7kV ceramic 3.25" body roller inductor (35μH) wound with 10 Ga. plated solid copper wire, and silver-plated inductor wheel shaft and contact wheel |
| Impedance: | |
| Metering: | Active crossneedle Peak/Peak Hold with backlighting |
| Meter power range: | 0-300 Watts/ 0-3000 Watts |
| Balun: | Ferrite 1:1 input balun |
| Output: | Unbalanced/Balanced activated by front panel switch with high power 5 kW Teflon wire balun at input of tuner circuit |
| Cooling: | Fan cooling for extended 100% duty cycle operation |
| Chassis: | .090 ga. aluminium gold iridite coated |
| Top cover: | .090 ga. aluminium powder coated |
| Front cover: | .090 ga. aluminium powder coated |
| Dimensions: | 16 1/4" wide x 8 1/4" high x 19 3/4" deep |
| Shipping weight: | 30 lbs |
| Warranty: | One year |
